โฟโต้สวิตช์แบบทรงสี่เหลี่ยม
Square Photo Switch
รุ่น XC-SP3M Series
คุณลักษณะ
รายละเอียด||โฟโต้สวิตช์แบบทรงสี่เหลี่ยม รุ่น XC-SP3M Series
- For automatic door system, elevator, escalator, passenger conveyor detection.
- Easy to install without using any tools.
- Good environmental resistance up to IP67.
- With Light ON and Dark ON two systems.
| Item | Specifications | |||
|---|---|---|---|---|
| Model Number | XC-SP3MNE1 | XC-SP3MNE2 | XC-SP3MPE1 | XC-SP3MPE2 |
| Sensing Method | Through-Beam | |||
| Sensing Distance | 3M | |||
| Switching Output |
NPN NO | NPN NC | PNP NO | PNP NC |
| Standard Sensing Object | Opaque 8mm. | |||
| Operating Coltage | DC 12~24V±10% | |||
| Response Time | ＜5ms | |||
| Load Current | ＜100mA | |||
| Light Source | Infrared LED | |||
| Operation Indicator | Red LED | |||
| Circuits Protection | Reversed Polarity Protection | |||
| Enclosure Protection | IEC IP67 | |||
| Ambient Temperature & Humidity Range | Operating：-20 ~ 55℃ / RH 35 ~85﹪ (With no Icing or Condensation) | |||
| Ambient Illumination | Lamplight ＜3500 Lux / Sunlight ＜11000 Lux | |||
| Housing Material | Case：ABS / Lens：Acrylic | |||
| Connecting Method | Pre-Wired 2M Cable | |||

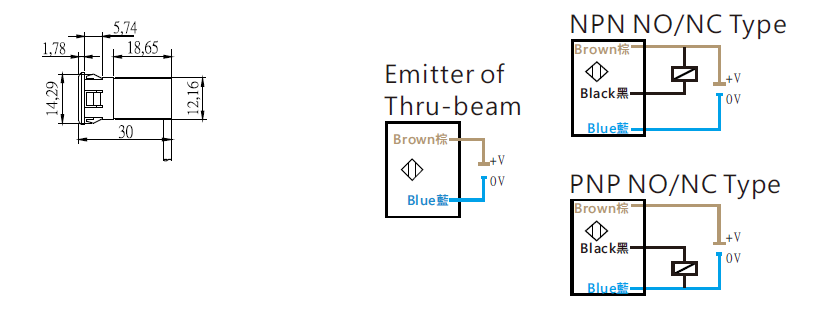

Dimension / Wiring Diagram
